To view these documents, you will need to download the free Acrobat Reader, which gives you instant access to PDF files. Hayward websites have been developed in compliance with standards for Internet Explorer 10 or later. IE9 and older versions are not supported. The Hayward SP0714T is 1.5' FIP and the valve comes complete with pressure gauge, sight glass, and o-ring. It does not include the flange clamp item number (GMX600NM). The sight glass on the valve allows you to see when the backwashing cycle is completed.

Hayward Pro Series Sand Filter Operation and Maintenance

• Hayward SP0714T sand filter valve. Hayward Vari-Flo Multiport Valve SP0714T. Hayward - Vari-Flo SP0714T 1 1/2' top-mount valve. HaywHayward® Vari-Flo XL ™ Multiport valve, made of exclusive.
• USER MANUAL CMP# 27515-154-000 PRODUCT INFORMATION This multi-port valve is for replacement of the Hayward SP0714T Vari-Flo XL Valve. and it is used for Hayward Sand Filters such as S166T, S180T, S210T, S220T and S244T. It features an easy-to-use lever action handle that lets you dial up to seven valve/.
• Title: Hayward SP0714T Series Vari-Flo™ XL Valve - Instruction Sheet Author: Hayward Pool Products Created Date: 3/2/1999 8:56:34 AM.

Operation and Maintenance

- How to change sand filter

- How to Clean sand filter

- The best sand filter deals now

Hayward Vari Flow Parts

Sand Filtration employs a simple technique of water filtering down through a bed of sand and any solid particles like debris and dirt are trapped in the sand.

The Hayward Pro-series Sand Filters use this simple but very effective method to give you the filtration you need to clean your pool water. The water enters the Pro-series sand filter and is channeled to the top of the filter and falls on a bed of sand. Filtered water then exits through laterals at the bottom of the filter and the trapped dirt in the sand is removed via periodic backwashing and infrequent sand replacement. The Hayward Pro-series sand filter is easy to install and very simple to maintain.

Hayward Sand Filter Repair Tips

CONNECTING PIPES TO THE VALVE - We see a lot of cracks created by installers incorrectly attaching a pipe to the VAri-Flow valve. For a slip valve connection, use regular PVC glue to attach the pipes. However, for threaded valve connections, use Teflon tape or Permatex #2 so that a flexible non-permanent seal is created. Also, the use of unions with any tank top-mounted valve will allow for easy removal of the valve for sand replacement down the road.

VALVE SEAT GASKET REPLACEMENT - When replacing the seat gasket, use Hayward adhesive (Part # SPX0710Z9) to seal the seat gasket - otherwise the seat gasket will roll out when the valve handle is moved. NOTE: the gasket is not replaceable on the model 714 multi-port valve.

TANK REPLACEMENT - When replacing a damaged tank, the quickest way to get sand out is to drill four holes in a rectangular about 16' x 10' just below halfway line of the tank, then connect the dots with a reciprocating saw. The opening created will allow for quick and easy removal of sand.

Hayward Sp0714t Manual User

SAND REPLACEMENT - When replacing sand only (not tank), sand removal can be expedited with a wet-dry vac. When refill the tank with sand, cover the upper diffuser or stack pipe so sand does not get inside, and pre-fill the tank with a foot of water to protect the laterals.

TYPE OF SAND - Filter sand should feel coarse; if not, it may be time to replace it. The type of sand commonly used is 20 silica sand, which is neither too coarse (allowing debris by) nor too fine (plugging up the filter permanently)

AMOUNT OF SAND - Sand should be level in the tank, and fill about half the filter. Models vary, but a rule of thumb is to add sand until the top of the sand bed is 12' below the bottom of the valve (or top of the diffuser). The minimum height of the sand should at least reach the widest part of the filter.

RINSE NEW FILTER, NEW SAND - When starting up a new filter or replacing sand, start the filter in the rinse cycle for 1 to 3 minutes to prevent small particles and impurities from blowing back to the pool. If that happens, vacuum the debris to waste.

Hayward Sand Filter Operation Tips

SHUT OFF PUMP - Turning the filter Control Valve handle while water is being pumped through the filter can damage the valve and possibly other equipment as well. So Always shut off the system's pump before switching valve positions. Then, when turning the valve, be sure to fully depress the valve handle to prevent damaging the valve seal gasket.

Hayward Sp0714t Manual

PERIODIC (NOT FREQUENT) BACKWASHING - A little-known fact is that a sand filter operates most efficiently during mid-cycle. Debris trapped in the sand bed actually help the filter work better - so frequent backwashing reduces efficiency. Sand filters should only be backwashed when the filter has collected so much debris that it begins to restrict water flow and increase water pressure.

USE PRESSURE GAUGE - The use of a pressure gauge with sand filters is very important because the filter should not be backwashed until water pressure has risen 5 - 10 PSI (see owner's manual per unit) due to accumulated debris in the filter.

WATCH BACKWASH CLOSELY - Backwashing can waste 50 to 300 gallons of water, so pay attention - this water has chemicals you paid to put in the pool, not the street. Backwash until the waste line water or site-glass water on the side of the valve becomes clear.

NEW POOL CLEANING - Do not vacuum a new pool with the filter in the backwash mode, as this could plug up the laterals at the bottom of the filter with dust from the new pool surface.

VERIFY FLOW RATE - If the filter's recommended flow rate is exceeded, a shafting effect (tunneling) will take place in the sand, allowing debris to bypass the sand's intended filtration effect.

Hayward Sp0714t Manual Diagram

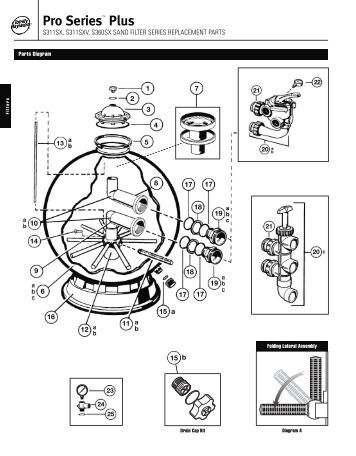

Repalcement Parts for Hayward SP0714 Valve

HaywardPro-Series Sand Filter (Top-mount)

Comes complete with Top-mount Valve. Automatic air relief Unitized, corrosion-proof filter tank. 6-position Hayward Vari-Flo control valve.

Hayward Vari Flo Valve Manual

Hayward Pro-Series Sand Filter (Side-mount)

Comes complete with Side-mount Valve. Automatic air relief Unitized, corrosion-proof filter tank. Valves sold seperately.
